The Paradigm Shift in Zener Voltage Regulation & Micro-Dielectric Ceramics
Reverse Breakdown Dynamics
Modern Zener diodes leverage quantum tunneling (under 5.6V) and avalanche breakdown (above 5.6V) to maintain rock-solid reference voltages despite fluctuations in current load. Our supply architecture ensures ultra-tight voltage tolerance down to ±1% for precision instrumentation.
Thermal & Dissipation Coefficients
Voltage regulation stability hinges directly on thermal management. By pairing high-purity zirconia substrates and advanced thermal packaging, thermal derating curves are optimized, lowering total dynamic impedance (ZZT) under peak surge currents.
Transient Surge & ESD Protection
Beyond reference voltage clamping, specialized Zener arrays serve as primary surge suppressors across automotive CAN-bus, industrial PLC loops, and USB Type-C power lines, compliant with IEC 61000-4-2 standard requirements.
Information Gain Insight: The convergence of microelectronics and structural ceramic processing allows Zener regulation modules to achieve unprecedented power-to-footprint ratios. Advanced ceramic encapsulation and high-density ZrO2 carriers minimize thermal drift, reducing junction temperatures by up to 35% during continuous clamping scenarios.
Enterprise Manufacturing Scale
Quantifiable Leadership in Power Regulation Supply
500M+
Annual Component Volume
±0.5%
Precision Voltage Deviation
100k m²
Smart Factory Campus
< 1 PPM
Defect Rate Standard
Strategic Innovation
Zener Technology Roadmap & Industry Trends (2025–2030)
As power densities rise in electric vehicles and AI computing racks, voltage regulator suppliers must innovate across semiconductor materials, packaging form factors, and ultra-low leakage profiles.
Phase 1: Present Standard
Sub-Miniaturization & DFN/CSP Packaging
Transitioning from traditional SOD-123 and SOT-23 packages to leadless DFN1006 and Wafer-Level Chip-Scale Packaging (WLCSP). Enables high-density surface mount assembly (SMT) with zero parasitic inductance for high-frequency noise suppression.
Phase 2: Mid-Term Evolution
Wide Bandgap (SiC/GaN) Voltage Reference Integration
Development of Silicon Carbide (SiC) and Gallium Nitride (GaN) compatible Zener voltage reference networks. Engineered to operate under extreme environments exceeding 200°C ambient temperatures in aerospace and EV inverter power units.
Phase 3: Next-Gen Future
Zero-Leakage & Hybrid Dielectric Substrates
Incorporation of advanced ceramic insulating carriers (Y-TZP and high-purity Al2O3) directly onto the semiconductor die frame. Reduces reverse leakage current (IR) to sub-nanoampere levels, vital for energy-harvesting IoT nodes.
Industry Benchmark Parameter Matrix
Parameter
Standard Commercial Zener
Automotive AEC-Q101 Grade
High-Precision Industrial Zener
Nominal Zener Voltage Range (VZ)
2.4V to 75V
3.3V to 100V
1.8V to 200V
Voltage Tolerance Options
±5% (B Class)
±2% (A Class)
±0.5% / ±1% (Precision)
Power Dissipation (PD)
200mW - 500mW
500mW - 3W
500mW - 5W
Operating Junction Temp (TJ)
-55°C to +150°C
-65°C to +175°C
-65°C to +200°C
Packaging Form Factors
SOD-323, SOT-23
SOD-123FL, SMA, SMB
DFN0603, DFN1006, Custom Ceramic
Macro-Industry Solutions
Targeted Applications for Zener Regulators & Micro-Ceramics
Automotive & Electric Vehicles (EV)
AEC-Q101 qualified Zener diodes provide gate protection for SiC MOSFETs in traction inverters, battery management systems (BMS), and onboard chargers (OBC). Prevents over-voltage spikes during load dump conditions.
Industrial Automation & Smart Grid
Protects PLC 24V bus lines, analog sensor inputs, and smart meter power supplies against electrical fast transients (EFT). Guarantees continuous operating uptime in high-noise electromagnetic environments.
Consumer Electronics & Wearables
Ultra-small DFN packaging allows integration inside smartphones, wireless earbuds, and medical wearables, ensuring stable charging voltage references and ESD clamping on high-speed data lines.
Smart Manufacturing
China Factory 4.0: Supply Chain Resilience & Cost Optimization
Combining automated silicon wafer processing, ultra-precise ceramic powder synthesis, and intelligent testing arrays to yield unmatched supply stability for global enterprise procurement.
Automated Wafer Fabrication
State-of-the-art diffusion furnaces and ion implantation lines ensure consistent doping profiles, achieving exact breakdown voltages across batch lots.
In-House Ceramic Substrates
By producing high-purity zirconia and alumina ceramic components in our 100,000 m² campus, we control the entire thermal dissipation value chain.
100% Automated Optical Test
Every single Zener diode undergoes automated electrical parameters testing (VZ, IR, ZZT) and high-speed optical alignment checks.
Global Buffer Stocking
Flexible logistics hubs support VMI (Vendor Managed Inventory) and JIT (Just-In-Time) deliveries, insulating buyers from supply chain shocks.
Global Sourcing Partner
Seamless Sourcing for Tier-1 Manufacturers & Exporters
Custom BOM Optimization
Our engineering team works directly with your hardware designers to cross-reference legacy part numbers, offering drop-in replacements that reduce BOM costs by 20% to 40% without compromising reliability.
Rigorous Quality Compliance
Full compliance with RoHS 3.0, REACH, Conflict-Free Minerals guidelines, and ISO 9001:2015 quality management standards. Full PPAP Level 3 documentation available for automotive clients.
Export & Localization Support
Multilingual technical documentation, localized import clearance assistance, flexible FOB/CIF/DDP shipping terms, and dedicated technical support across North America, Europe, and Asia-Pacific.
Technical Q&A
Frequently Asked Questions by Sourcing & Design Engineers
What is the fundamental operational difference between Zener breakdown and Avalanche breakdown?
Zener breakdown occurs primarily in heavily doped p-n junctions with breakdown voltages below 5.6V. Under a reverse bias, the electric field across the narrow depletion layer is intense enough to directly pull electrons out of the valence band into the conduction band (quantum mechanical tunneling), resulting in a negative temperature coefficient. Conversely, Avalanche breakdown occurs in lightly doped junctions above 5.6V, where thermally accelerated minority carriers collide with the crystal lattice, liberating additional electron-hole pairs in a cascading impact ionization process, exhibiting a positive temperature coefficient.
How does dynamic impedance (ZZT) impact Zener regulator performance?
Dynamic impedance (ZZT) represents the internal AC resistance of the Zener diode when operating in its reverse breakdown region (ZZT = ΔVZ / ΔIZ). A lower ZZT value signifies that the regulated voltage (VZ) will experience minimal drift even when large fluctuations occur in the operating current. High-quality Zener voltage regulators manufactured with low-defect semiconductor junctions achieve very small ZZT values, ensuring superior voltage stability under varying load conditions.
Why are high-purity zirconia and alumina materials critical in modern component production?
Ultra-pure zirconia (ZrO2) and alumina (Al2O3) media serve two vital functions: First, in ultra-fine particle grinding of semiconductor raw materials and ceramic substrates, contamination-free grinding beads (such as Y-TZP) prevent metallic impurity inclusions that lead to premature dielectric breakdown. Second, ceramic substrates offer high thermal conductivity and excellent electrical insulation, allowing modern surface-mount power regulators to dissipate heat rapidly away from the silicon junction.
Can wholesale Zener suppliers provide customized breakdown voltages and tight tolerances?
Yes. Direct manufacturers with automated wafer diffusion and testing infrastructure can supply custom Zener diodes tailored to precise breakdown voltage limits (e.g., ±1% or ±0.5% precision bins). Custom packaging, specific thermal pad layouts, and specialized tape-and-reel configurations for automated SMT lines are readily available upon request.
What documentation is available for enterprise export orders?
All export shipments can be supplied with comprehensive batch test reports (Certificate of Analysis / COA), Technical Data Sheets (TDS), Material Safety Data Sheets (MSDS), RoHS/REACH compliance certificates, Certificate of Origin (CO), and PPAP Level 3 documentation for automotive OEM clients.
Featured Portfolio Part II

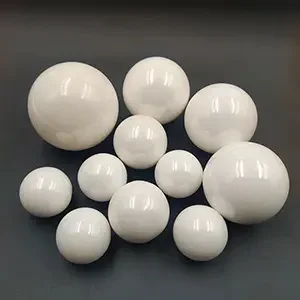

High-Performance Grinding Media & Adsorbents Catalog
Essential materials for fine chemical synthesis, ceramic packaging processing, and industrial gas purification systems.
