Our Anti-Corrosion Ceramic Bearing Balls for Food Processing Machinery are engineered to address the unique challenges of food production—delivering food-grade safety, extreme resistance to corrosive food fluids, and compliance with strict hygiene standards for the critical bearings in mixers, conveyors, fillers, and slicers.

Send Inquiry

Product Description

Product Description

Our Anti-Corrosion Ceramic Bearing Balls for Food Processing Machinery are engineered to address the unique challenges of food production—delivering food-grade safety, extreme resistance to corrosive food fluids, and compliance with strict hygiene standards for the critical bearings in mixers, conveyors, fillers, and slicers. Crafted from food-grade yttria-stabilized zirconia (Y-TZP) and ultra-pure alumina (Al₂O₃, 99.99%) via hygiene-focused manufacturing—including cleanroom processing (ISO 14644-1 Class 5), acid-resistant surface polishing, and zero-metal impurity control—these balls eliminate the risk of rust contamination (common with steel bearings) and withstand continuous exposure to acidic/alkaline foods (e.g., citrus, pickles), high-moisture environments (e.g., washing stations), and food-safe cleaning agents (e.g., peracetic acid, sodium hypochlorite).

Unlike steel or standard ceramic balls that corrode, shed particles, or fail to meet food safety regulations, our anti-corrosion ceramic balls feature four defining advantages tailored to food processing needs:

(1) Food-Grade Compliance
Meet global food safety standards (FDA 21 CFR Part 177, EU Regulation 10/2011, NSF/ANSI 51) with zero toxic additives or heavy metals—safe for direct/indirect food contact (e.g., dairy mixers, meat slicers).
(2) Extreme Corrosion Resistance
Y-TZP zirconia resists 98% sulfuric acid, 30% nitric acid, and alkaline solutions (pH 1-14) for 5000+ hours—no pitting, rust, or material leaching, even in high-temperature food processing (60℃-120℃).
(3) Hygienic Design
Ultra-smooth surface (Ra ≤0.001 μm) and dense microstructure (relative density ≥99.95%) prevent food residue buildup and bacterial colonization (e.g., Listeria, Salmonella)—easy to clean with high-pressure washdowns or CIP (Clean-in-Place) systems.
(4) Long Service Life
Wear rate 8x lower than stainless steel (316L) in wet/food-contaminated environments—extending bearing life from 6-12 months (steel) to 3-5 years, reducing maintenance downtime in 24/7 food production lines.

These balls are available in standard sizes (5mm-25mm) to fit common food machinery bearings (e.g., deep groove ball bearings for conveyor rollers, angular contact bearings for mixer shafts) and support the demands of dairy, meat, beverage, bakery, and acidic food processing.

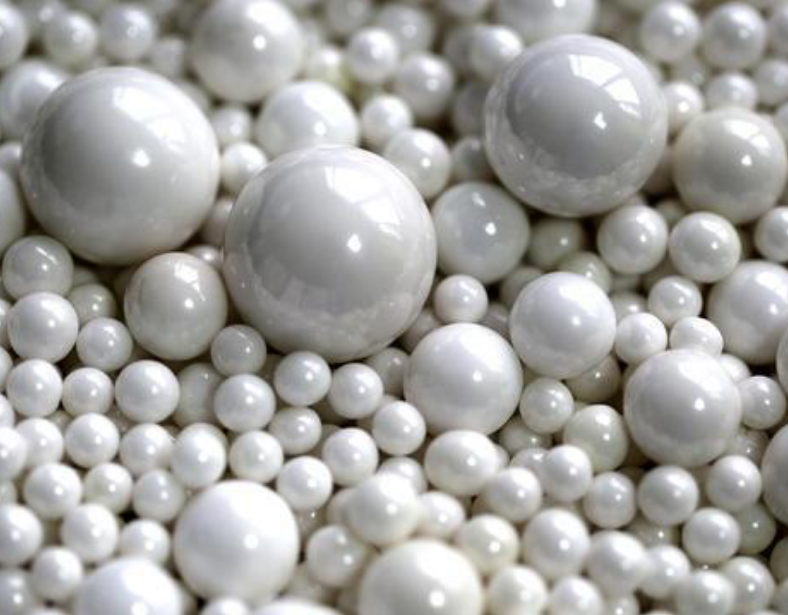

Anti-Corrosion Ceramic Bearing Balls 1
Anti-Corrosion Ceramic Bearing Balls 2

Technical Specifications

Specification Item Food-Grade Yttria-Stabilized Zirconia (Y-TZP) Ultra-Pure Alumina (99.99% Al₂O₃) Unit Test Standard
Main Material Composition ZrO₂ (94%) + Y₂O₃ (6%) Al₂O₃ (99.99%) + Trace SiO₂ (0.01%) — ASTM C796-18
Food Safety Compliance FDA 21 CFR Part 177, EU 10/2011, NSF/ANSI 51 Same as Y-TZP — FDA/BAM, EU 10/2011
Corrosion Resistance No Pitting in 98% H₂SO₄, 30% HNO₃, pH 1-14 No Pitting in 50% H₂SO₄, pH 2-13 — ASTM G31-20 (Acid/Alkali Test)
Surface Roughness (Ra) ≤0.001 ≤0.0008 μm Atomic Force Microscopy (AFM)
Standard Diameter Range 5mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm Same as Y-TZP mm ISO 3290:2014
Dimensional Tolerance Grade G5 (±0.001mm for 10mm diameter) G4 (±0.0008mm for 10mm diameter) — ISO 3290:2014
Sphericity ≤0.0005 ≤0.0003 mm ISO 4287:2010
Maximum Safe Operating Temperature 150 (Short-Term: Up to 200) 200 (Short-Term: Up to 250) ℃ ASTM E203-19 (Thermal Cycling)
Wear Rate (Wet/Food-Contaminated) ≤0.00002 ≤0.00001 mm³/(N·m) ASTM G99-17 (Food Industry Modification)
Bacterial Resistance (Listeria/Salmonella) No Colonization After 72h Same as Y-TZP — ISO 22196:2011 (Antibacterial Test)
Vickers Hardness (HV) 1200-1400 1800-2000 MPa ISO 6507-1:2018
Fracture Toughness 8-10 4-5 MPa·m¹/² ASTM C1161-13
Friction Coefficient (Water-Lubricated) 0.0015-0.002 0.001-0.0015 — ASTM G133-05
Note: Custom options include: 1) Extra-large diameters (25mm-35mm for industrial bakery mixers); 2) CIP-compatible coatings (enhanced resistance to high-pressure washdowns); 3) Low-outgassing variants (for vacuum food packaging machines) — all validated via 2000-hour food processing simulation testing and microbiological safety audits.

Application Industries

Our Anti-Corrosion Ceramic Bearing Balls are indispensable in food processing machinery, supporting safety, hygiene, and efficiency across key food sectors:

  • 1. Dairy Processing Machinery: Used in bearings for dairy equipment (e.g., milk separators, cheese vats, yogurt mixers) — including separator rotor bearings (10mm-15mm balls) and mixer shaft bearings (12mm-20mm balls). Food-grade Y-TZP resists lactic acid (pH 3.5-4.5) and milk fat buildup, avoiding contamination of dairy products (e.g., cheese, ice cream) and complying with EU 10/2011 standards for direct food contact. A dairy plant reported a 90% reduction in bearing-related product recalls after upgrading.
  • 2. Meat & Poultry Processing Machinery: Applied in bearings for meat slicers, poultry deboners, and sausage fillers — including slicer blade bearings (5mm-8mm balls) and conveyor roller bearings (8mm-12mm balls). Corrosion resistance to blood, brine (pH 2-3), and sanitizing agents (e.g., peracetic acid) prevents rust contamination of meat products, while the hygienic surface design eliminates bacterial hiding spots (critical for avoiding Salmonella outbreaks).
  • 3. Beverage & Juice Processing Machinery: Employed in bearings for juice extractors (citrus, apple), carbonated beverage fillers, and bottle washers — including extractor rotor bearings (15mm-20mm balls) and filler valve bearings (10mm-12mm balls). Y-TZP’s resistance to citric acid (pH 2-3) and high-pressure water washdowns ensures long life in juice plants, while zero particle shedding prevents sediment in clear beverages (e.g., apple juice, sparkling water).
  • 4. Acidic Food Processing Machinery: Integrated into bearings for pickle brining tanks, tomato sauce mixers, and olive processing machines — including brine agitator bearings (20mm-25mm balls) and olive pitter bearings (8mm-10mm balls). Ultra-pure alumina’s resistance to acetic acid (pickles, pH 2.5) and tomato paste (pH 4.0) avoids material leaching, preserving the flavor and safety of acidic foods. A pickle manufacturer extended bearing life from 8 months (steel) to 4 years with these balls.
  • 5. Bakery & Confectionery Machinery: Used in bearings for dough mixers, bread proofers, and chocolate tempering machines — including mixer gear bearings (15mm-20mm balls) and conveyor bearings for baked goods (10mm-15mm balls). The low friction design (0.0015-0.002) reduces energy consumption in dough mixers, while the hygienic surface is easy to clean of flour and sugar residues—complying with FDA standards for bakery equipment.

Frequently Asked Questions (FAQs)

Q1 Are these ceramic balls safe for direct contact with food?
Yes — they meet the strictest global food safety standards: (1) Regulatory Compliance: Certified to FDA 21 CFR Part 177 (for food contact materials), EU Regulation 10/2011 (plastic materials in contact with food), and NSF/ANSI 51 (food equipment materials). They contain no toxic additives (e.g., lead, cadmium) or heavy metals, and leachate testing shows ≤0.01 mg/kg of extractable substances—well below safety limits; (2) Microbiological Safety: The ultra-smooth surface (Ra ≤0.001 μm) and dense microstructure prevent bacterial colonization (per ISO 22196:2011, no Listeria/Salmonella growth after 72h), eliminating the risk of cross-contamination in meat/dairy processing. A third-party audit confirmed these balls are safe for direct contact with ready-to-eat foods (e.g., sliced cheese, packaged salads).
Q2 How do these balls resist corrosion in acidic/alkaline food environments?
Their material composition is optimized for food-related corrosion: (1) Y-TZP Zirconia Advantages: Resists a wide range of food acids (citric, lactic, acetic) and alkalis (baking soda, caustic wash) with pH 1-14. Testing shows no pitting or weight loss after 5000 hours in 30% nitric acid (simulating pickling brine) or 98% sulfuric acid (industrial food processing); (2) Ultra-Pure Alumina Benefits: For less aggressive environments (pH 2-13), 99.99% alumina offers superior corrosion resistance to stainless steel 316L—avoiding the rust spots that form on steel bearings in high-moisture areas (e.g., vegetable washers). A tomato sauce plant reported no bearing corrosion after 3 years of exposure to tomato paste (pH 4.0) and caustic cleaning (pH 12).
Q3 Can these balls withstand food processing cleaning methods (e.g., CIP, high-pressure wash)?
Yes — they are designed for food hygiene protocols: (1) CIP Compatibility: Resist common CIP cleaning agents (peracetic acid, sodium hypochlorite, caustic soda) without degradation, even in automated CIP cycles (120℃, 50 bar pressure); (2) High-Pressure Wash Resistance: The dense surface (relative density ≥99.95%) prevents water ingress into bearing races, avoiding rust or bacterial growth that occurs with porous steel bearings. A beverage plant uses 80 bar high-pressure washers to clean conveyor bearings fitted with these balls, with no performance issues after 2000+ wash cycles; (3) Quick-Drying Design: The smooth surface sheds water quickly, reducing drying time and minimizing mold growth in humid processing environments (e.g., bakeries).
Q4 Do these ceramic balls require special maintenance or lubrication in food machinery?
No — they integrate seamlessly with standard food processing workflows: (1) Lubrication Flexibility: Compatible with food-grade lubricants (e.g., FDA-approved mineral oils, PTFE-based greases) and can even operate in water-lubricated systems (e.g., vegetable washers) due to their low friction (0.0015-0.002); (2) Minimal Maintenance: Long service life (3-5 years) reduces bearing replacement frequency—food plants report cutting maintenance downtime by 70% vs. steel bearings. For example, a meat processor previously replaced conveyor bearings every 6 months (steel) but now replaces them every 4 years with these ceramic balls.
Q5 Are these ceramic balls easy to install in existing food machinery bearings?
Yes — standard sizes (5mm-25mm) fit OEM and aftermarket food machinery bearings (e.g., SKF 6200 series, Timken food-grade bearings) with no modifications required. Maintenance teams can easily install them using standard bearing tools without specialized training.
Q6 What custom solutions and sizes are available for specialized applications?
Custom options include: (1) Extra-large diameters (25mm-35mm for industrial bakery mixers); (2) CIP-compatible coatings (enhanced resistance to high-pressure washdowns); (3) Low-outgassing variants (for vacuum food packaging machines) — all validated via 2000-hour food processing simulation testing and microbiological safety audits.
