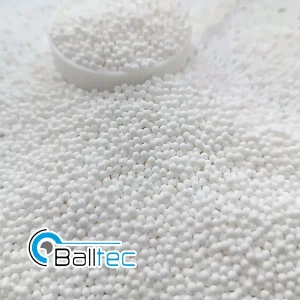

High-Quality Wear-Resistant High Purity Alumina Grinding Bead for Ink Production Manufacturers, Exporter
View Details
China High Strength Zirconium Silicate Beads Zirconia Ceramic Balls For Mill Grinding Media Factory, Exporters
View Details
High-Quality High Purity Alumina Grinding Bead for Ceramic Glaze Milling Manufacturer, Suppliers
View Details
High-Quality Precision Ground Ceramic Bearing Ball for Robotics Joints Suppliers, Factories
View Details
High-Quality Zirconia Grinding Ball for Fine Particle Grinding and Uniform Dispersion Manufacturers, Exporters
View Details
High-Quality Zirconia Grinding Ball for Durable Long Lasting Grinding Media Use Manufacturers, Suppliers
View Details

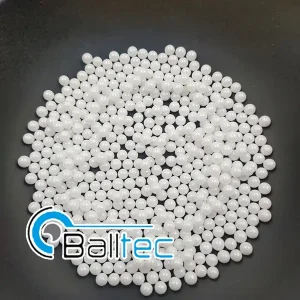

China Zirconia Bead for Grinding High Performance Precision Grinding Media Factory, Factories
View DetailsUnderstanding the Paradigmatic Shift in Mechanical Tribology and High-Speed Bearing Engineering
In the rapidly evolving landscape of advanced material science, Silicon Nitride (Si3N4) ceramic balls represent the pinnacle of high-performance engineering components. As modern rotating equipment pushes the boundaries of speed, temperature, chemical hostility, and mechanical stress, traditional chrome steel (such as AISI 52100) and conventional alloys encounter physical degradation thresholds. Silicon nitride ceramic balls provide a transformative solution across aerospace propulsion systems, electric vehicle (EV) drive units, semiconductor manufacturing apparatus, and heavy industrial machinery.
The global demand for high-precision silicon nitride balls has surged, driven predominantly by three macroeconomic technology shifts: the electrification of global transport, the relentless expansion of renewable energy generation (specifically offshore wind turbines), and the miniaturization of high-frequency semiconductor processing equipment. Silicon nitride exhibits a unique combination of mechanical, thermal, and electrical properties that place it far ahead of alternative ceramics such as Zirconia (ZrO2) and Alumina (Al2O3).
Information Gain Insight: Unlike zirconia which suffers from hydrothermal degradation (aging phenomenon in warm, humid conditions), silicon nitride retains its structural integrity, mechanical toughness, and dimensional stability up to temperatures exceeding 1000°C while offering a mass density that is less than half that of bearing steel.
| Physical / Mechanical Property | Silicon Nitride (Si3N4) | Zirconia (Y-TZP) | Alumina (Al2O3 99.5%) | Bearing Steel (52100) |
|---|---|---|---|---|
| Density (g/cm³) | 3.21 | 6.05 | 3.92 | 7.85 |
| Hardness (HV10) | 1500 - 1700 | 1200 - 1300 | 1400 - 1600 | 700 - 800 |
| Elastic Modulus (GPa) | 320 | 210 | 380 | 208 |
| Thermal Expansion (10⁻⁶/K) | 3.2 | 10.5 | 8.0 | 12.5 |
| Fracture Toughness (MPa·m¹/²) | 6.0 - 8.5 | 5.0 - 10.0 | 3.5 - 4.5 | 20 - 25 |
| Electrical Insulation | Excellent (>10¹⁴ Ω·cm) | Moderate | Excellent | Conductor (10⁻⁵ Ω·cm) |
| Max Operating Temp (°C) | 1000+ | 500 | 1200 | 150 - 200 |
How Advanced Chinese Factories Have Optimized GPS and HIP Technologies to Deliver World-Class Quality at Scale
Chinese manufacturers utilize ultra-pure sub-micron alpha-phase Si3N4 starting powders synthesized via silicon nitridation or carbothermal reduction. Sintering under high nitrogen pressure suppresses thermal decomposition, enabling zero-porosity densification.
For Grade 3 (G3) aerospace and high-speed spindle applications, Chinese exporters implement secondary HIP processing at pressures up to 200 MPa and 1850°C. This eliminates internal micro-voids, elevating Weibull modulus values beyond 15.
Leveraging multi-stage planetary polishing systems with custom diamond slurries, Chinese factories achieve sub-nanometer surface roughness (Ra ≤ 0.003 μm) and sphericity deviations within 0.08 μm, fulfilling ISO 3290-2 G3 specs.
The global manufacturing ecosystem has experienced a massive realignment over the past decade. Historically concentrated in Western Europe and Japan, high-tier silicon nitride manufacturing has seen rapid, capital-intensive expansion in China's industrial clusters (specifically across Jiangxi, Shandong, and Jiangsu provinces). Chinese factories have achieved competitive advantages through three key structural pillars:
Where Precision Si3N4 Ceramic Balls Are Mission-Critical across Global High-Tech Sectors
With high-voltage 800V silicon carbide (SiC) inverters, parasitic stray currents induce electrical arc pitting (fluting) on standard steel bearing balls. Hybrid ceramic bearings with Si3N4 balls provide complete electrical insulation, preventing catastrophic motor failure and noise vibration roughing (NVH).
Mainshaft aircraft engine bearings experience DN values (bearing bore mm × RPM) exceeding 3 million. Si3N4 balls cut centrifugal forces by 58% and withstand lubricity starvation during emergency un-lubricated flight windows due to their extremely low coefficient of friction (0.002 lubricated, 0.2 dry).
In turbomolecular pumps (TMP) and wafer handling equipment, lubricants outgas and contaminate vacuum chambers. Si3N4 balls operate flawlessly under dry-vacuum conditions, resistant to corrosive fluorinated process gases (HF, NF3) without rusting or particle shed.
Offshore wind installations suffer from premature bearing failure due to micro-spalling caused by stray grid currents and sudden load dynamics. Installing Si3N4 ceramic bearing balls extends maintenance cycles from 3 years to over 15 years, eliminating costly crane offshore mobilizations.
In high-energy horizontal bead mills grinding sub-micron pigments, active pharmaceutical ingredients (APIs), and cathode materials (LFP/NCM), Si3N4 grinding balls deliver dense impact kinetic energy without media breakdown, ensuring contaminant-free particle dispersion down to D50 < 100 nm.
Key Technical Criteria Global Procurement Teams Must Inspect When Sourcing from Chinese Suppliers
When sourcing silicon nitride balls internationally, procurement officers and quality managers must go beyond basic price-per-kilogram metrics. Fulfilling rigorous application requirements necessitates stringent oversight of microstructural characteristics, non-destructive testing (NDT), and geometric compliance under ASTM F2094 and ISO 3290-2 standards.
Quality Assurance Tip for Buyers: Always request resonant ultrasound spectroscopy (RUS) or 100% eddy current defect detection reports. Surface micro-cracks invisible to optical microscopes can cause premature catastrophic spalling under cyclic fatigue loading.
The precision grade directly dictates the allowable sphericity, diameter variation, and surface roughness of the ceramic ball:
Detailed Answers to Common Engineering & Procurement Questions
Complete Industrial Portfolio Available for International Export
High-Quality 1.6-2.5mm 3-5mm 3A Zeolite Molecular Sieve Sphere/Pellet Adsorbent for Natural Gas Drying
View Details

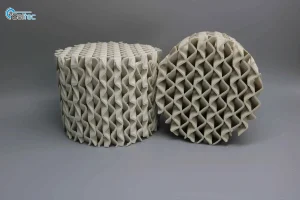

Wholesale Ceramic Packing Factory Supply High Quality 500Y Ceramic Corrugated Structured Packing
