In modern power management and signal conditioning, the choice between standard rectifiers, fast recovery diodes (FRED), transient voltage suppressors (TVS), and Zener diodes hinges upon precise control over the silicon substrate's depletion region width. As a premier High-Quality Diode And Zener Diode Manufacturer, our wafer fabrication facilities utilize advanced diffusion profiles to separate pure Zener tunneling from avalanche breakdown effects.
When reverse bias is applied across a heavily doped PN junction, the depletion layer becomes exceptionally narrow (< 10 nm). At breakdown voltages below 5.6V, quantum mechanical tunneling of electrons across the narrow bandgap predominates—this is true Zener breakdown, exhibiting a negative temperature coefficient ($\theta_Z < 0$). Conversely, at nominal breakdown voltages exceeding 5.6V, impact ionization dominates—resulting in Avalanche breakdown with a positive temperature coefficient ($\theta_Z > 0$).
V_BR(T) = V_BR(25°C) \cdot [1 + \alpha_V (T - 25)]
Where $\alpha_V$ represents the temperature coefficient of voltage, precisely tuned via donor-acceptor ion implantation.
Traditional acid-etched junction diodes suffer from surface state degradation, high reverse leakage currents ($I_R$), and premature dielectric breakdown under elevated ambient temperatures. Premium manufacturers overcome these micro-defects by adopting full-glass passivation (GPP) technology.
During the GPP process, non-conductive glass frit is electro-deposited over the etched PN junction grooves and fired at temperatures above 800°C. This creates a hermetically sealed, chemically inert matrix over the silicon die boundary. The resulting diode chips feature low reverse leakage ($I_R < 1.0 \, \mu\text{A}$ at $V_{RRM}$), superior thermal cycling stability up to $T_j = +175^\circ\text{C}$, and high transient surge immunity ($I_{FSM}$).
| Diode Technology Class | Voltage Range ($V_Z / V_{RRM}$) | Max Power ($P_D / I_F$) | Dynamic Impedance ($Z_{ZT}$) / $t_{rr}$ | Key Packaging Enclosures | Primary Industrial Applications |
|---|---|---|---|---|---|
| Standard Rectifiers (GPP) | 50V – 1600V | 1.0A – 10.0A | $t_{rr} \approx 1.5 - 2.5 \, \mu\text{s}$ | DO-41, DO-214AC (SMA), SMB, SMC | AC/DC Mains Rectification, Power Supplies |
| Fast Recovery Rectifiers (FRED) | 100V – 1200V | 1.0A – 30.0A | $t_{rr} < 25 - 50 \, \text{ns}$ | SMA, SMB, TO-220AC, TO-247 | PFC Circuits, High-Frequency Inverters, SMPS |
| Precision Zener Diodes | 2.4V – 75V | 200mW – 5.0W | $Z_{ZT} = 2.0 - 100 \, \Omega$ | SOD-123, SOD-323, DO-35, SOT-23 | Voltage Reference, Sensor Protection, Logic Bias |
| TVS Diodes (Transient Suppression) | 5.0V – 440V | 400W – 15,000W (Peak) | Clamping Response < 1 ps | SMAJ, SMBJ, SMCJ, SMDJ, P600 | Lightning Protection, Automotive Load Dump, ESD |
| Schottky Barrier Diodes (SBD) | 20V – 200V | 0.5A – 40.0A | $V_F \approx 0.32 - 0.65 \, \text{V}$ | SOD-523, DFN1006, TO-277, D2PAK | Reverse Polarity Protection, Solar Bypass, VRMs |
China's semiconductor cluster integrates silicon ingot pulling, wafer slicing, chemical mechanical planarization (CMP), diffusion, wire bonding, lead-frame stamping, and high-speed automated testing within tight geographical radii (such as Jiangxi, Jiangsu, and Guangdong manufacturing hubs).

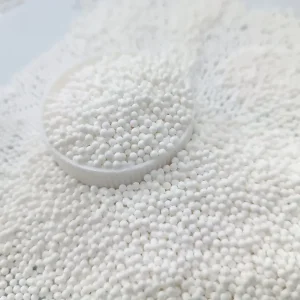

By leveraging ultra-pure raw materials—such as high-purity zirconia and alumina ceramic grinding media for CMP micro-abrasive slurries—our production lines achieve sub-nanometer die planarity, resulting in ultra-uniform breakdown voltages across entire 8-inch wafer matrices.
Operating under certified IATF 16949 quality management systems, Chinese discrete diode factories utilize 100% automated optical inspection (AOI), high-temperature reverse bias (HTRB) testing, and automated parametric sorting systems.
Every single reel of surface-mount Zener diodes undergoes 100% test logging for breakdown voltage ($V_Z$), reverse current ($I_R$), forward drop ($V_F$), and dynamic resistance ($Z_{ZT}$), guaranteeing zero-defect insertion rates on automated high-speed SMT placement machines.
High-volume production lines produce billions of discrete semiconductors monthly. High production density translates to massive economies of scale, protecting international buyers from supply chain shocks while guaranteeing competitive unit economics.
Furthermore, local integration with advanced structural ceramic carriers, heat sinks, and thermal insulation packaging allows Chinese suppliers to deliver higher power dissipation ratings ($P_D$) in smaller surface-mount footprints (e.g., DFN0603, SOD-923).
Electrification of automotive powertrains (800V architecture) demands robust load-dump protection (ISO 16750-2 test pulses). Automotive-grade TVS and Zener diodes act as the primary line of defense against high-energy transients induced by alternator disconnects or inductive switching in battery management systems (BMS).
High-speed data lines (USB 4, HDMI 2.1, 5G millimeter-wave RF front ends) require ESD protection diodes with ultra-low junction capacitance ($C_j < 0.2 \, \text{pF}$). Modern Zener-based ESD arrays clamp 30kV electrostatic discharges without distorting gigabit signal integrity.
In photovoltaic (PV) solar installations, high-voltage bypass diodes prevent hot-spot formation when solar cells are shaded. High-temperature Schottky and Zener regulators ensure energy efficiency across 1500V DC solar arrays while enduring severe outdoor environmental stress.
While both mechanisms result in a controlled reverse current flow without damaging the semiconductor die, they depend on distinct physical phenomena dictated by doping density:
GPP diodes feature a high-temperature glass coating directly over the PN junction edge. Standard acid-etched diodes use organic resin passivation. GPP offers vastly superior thermal stability ($T_j = 175^\circ\text{C}$ vs $150^\circ\text{C}$), lower reverse leakage current by 1–2 orders of magnitude ($I_R < 1 \mu\text{A}$), and significantly higher reliability under damp-heat environment stress testing (THB / 85°C 85% RH).
Dynamic impedance ($Z_{ZT} = \Delta V_Z / \Delta I_Z$) defines how much the regulated output voltage ($V_Z$) changes relative to variations in operating current ($I_Z$). A lower $Z_{ZT}$ indicates a sharper breakdown knee, ensuring tighter voltage regulation even under fluctuating load conditions or low input bias currents ($I_{ZK}$).
All discrete semiconductor components comply fully with international environmental and electrical mandates, including EU RoHS 3 (Directive 2015/863), REACH SVHC compliance, Halogen-Free requirements (IEC 61249-2-21), UL 94V-0 flame retardancy for epoxy encapsulation, and AEC-Q101 stress test qualification for automotive deployments.
Leading factories utilize thick copper clip bonding (instead of traditional thin gold wire bonds) combined with silver-filled eutectic die attach materials. This drastically reduces thermal resistance from junction to lead ($R_{\theta JL}$), enabling compact SMD packages like SOD-123FL or TO-277 to dissipate up to 3W to 5W safely without thermal runaway.
Yes. Custom wafer diffusion runs allow precise tuning of nominal Zener breakdown voltages with tight tolerances ($\pm 1\%$, $\pm 2\%$, or custom voltage bins). Packaging option variants range from ultra-small leadless DFN/QFN packages to heavy-duty axial lead DO-201AE or stud-mount enclosures for high-current industrial rectifiers.
