What is the difference between zirconia and alumina grinding media?

Yttria-stabilized zirconia beads typically have a density of about 6.0 g/cm³, compared with about 3.6 g/cm³ for high purity alumina. The higher density delivers more impact energy for fine and nano grinding with very low wear, which suits electronic materials, battery materials, inks and coatings. High purity alumina media are more cost-efficient and ideal where trace alumina is harmless, such as ceramics, glazes and alumina-based materials.

Which molecular sieve type should I choose?

4A molecular sieve is used for general gas and liquid drying and for removing water, ammonia and methanol from gas streams. 5A is used in PSA oxygen generators and normal-paraffin separation. 13X has the largest pore opening of the three and is used for air pre-purification (removing H2O and CO2) and as a catalyst carrier. Share your gas composition, pressure and dew point target for a specific recommendation.

What do G3 and G5 grades mean for ceramic bearing balls?

Ball grades defined by ISO 3290 and ABMA standards specify the allowable deviation in sphericity, diameter variation and surface roughness; a lower number means higher precision. G3 and G5 silicon nitride or zirconia balls are used in high-speed spindles, robotics joints, precision instruments and electric motors where low friction, electrical insulation and long service life are required.

Can you provide certificates, data sheets and test reports?

Yes. Copies of our management system certificates (ISO 9001, ISO 14001, ISO 18001) and CE documents, together with technical data sheets and batch test reports, are available on request. Email info@ball-tec.com with your application, size range and estimated quantity.

Where is your factory and do you support custom sizes?

Our 100,000 m² production base is located in the Ceramic Industrial Park, Development Zone, Pingxiang, Jiangxi Province, China, one of the country's leading industrial ceramic clusters. Custom diameters, compositions and packaging can be discussed directly with our engineering team.

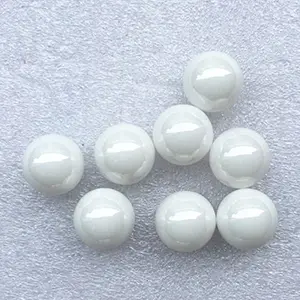

High-Quality Zirconium Oxide Ball for Grinding Fine Particle Production and Homogenization Suppliers, Factories

1 / 1

High-Quality Zirconium Oxide Ball for Grinding Fine Particle Production and Homogenization Suppliers, Factories

High-performance yttria-stabilized zirconium oxide balls are professionally manufactured for fine particle grinding, precise particle size reduction and material homogenization. Produced by advanced isostatic pressing and high-temperature sintering technology, the beads own dense crystal structure, ultra-high sphericity and extremely low wear rate. They deliver uniform and soft grinding force, effectively break particle agglomeration, refine coarse particles, and achieve excellent particle consistency and material homogenization. The stable physical and chemical properties ensure zero impurity pollution during fine processing, ideal for high-standard fine particle production.

Send Inquiry

Product Description

Technical Parameter Specifications

Item	Specification
Main Composition	Yttria-stabilized Zirconia ≥94.5%
Density	≥6.0 g/cm³
Vickers Hardness	1200–1350 HV
Sphericity	≥0.95
Wear Loss	≤0.15 ppm/h
Size Range	0.1mm–20mm

Core Advantages for Fine Processing

Ultra-Low Wear

Avoids tiny impurity shedding, ensuring high-purity finished powder during processing.

High Roundness

Ensures even grinding movement, enabling uniform particle size distribution and thorough material homogenization.

Superior Toughness

Prevents bead cracking and powder mixing during long-term fine milling, greatly improving production stability and product qualification rate.

Application Fields

Lithium Battery Materials High-End Coatings Nano-Pigments Cosmetic Powders Fine Chemicals Electronic Ceramic Materials

Designed for fine particle production and homogenization, the beads perfectly support ultra-fine grinding, particle dispersion and batch homogenization, suitable for all types of sand mills and ball mills for high-precision fine material processing.

Frequently Asked Questions

Q1: Why are zirconia balls better for fine particle homogenization?

High sphericity and uniform grinding force ensure consistent particle size and complete dispersion, achieving perfect material homogenization.

Q2: Can these beads process nano-level fine powder?

Yes. Matching small-size zirconia beads can realize submicron and nano-scale fine particle production and stable homogenization.

Q3: What size range is available for these grinding beads?

The beads are available in a comprehensive size range from 0.1mm to 20mm to fit various processing needs.

Q4: What is the wear loss rate of these zirconia grinding media?

The wear loss is extremely low at ≤0.15 ppm/h, ensuring high-purity processing with zero impurity pollution.

Q5: Which milling equipment is compatible with these zirconia beads?

They are perfectly suitable for all types of sand mills and ball mills designed for high-precision fine material processing.

High-Quality Zirconium Oxide Ball for Grinding Fine Particle Production and Homogenization Suppliers, Factories

Product Description

Technical Parameter Specifications

Core Advantages for Fine Processing

Application Fields

Frequently Asked Questions
