What is the difference between zirconia and alumina grinding media?

Yttria-stabilized zirconia beads typically have a density of about 6.0 g/cm³, compared with about 3.6 g/cm³ for high purity alumina. The higher density delivers more impact energy for fine and nano grinding with very low wear, which suits electronic materials, battery materials, inks and coatings. High purity alumina media are more cost-efficient and ideal where trace alumina is harmless, such as ceramics, glazes and alumina-based materials.

Which molecular sieve type should I choose?

4A molecular sieve is used for general gas and liquid drying and for removing water, ammonia and methanol from gas streams. 5A is used in PSA oxygen generators and normal-paraffin separation. 13X has the largest pore opening of the three and is used for air pre-purification (removing H2O and CO2) and as a catalyst carrier. Share your gas composition, pressure and dew point target for a specific recommendation.

What do G3 and G5 grades mean for ceramic bearing balls?

Ball grades defined by ISO 3290 and ABMA standards specify the allowable deviation in sphericity, diameter variation and surface roughness; a lower number means higher precision. G3 and G5 silicon nitride or zirconia balls are used in high-speed spindles, robotics joints, precision instruments and electric motors where low friction, electrical insulation and long service life are required.

Can you provide certificates, data sheets and test reports?

Yes. Copies of our management system certificates (ISO 9001, ISO 14001, ISO 18001) and CE documents, together with technical data sheets and batch test reports, are available on request. Email info@ball-tec.com with your application, size range and estimated quantity.

Where is your factory and do you support custom sizes?

Our 100,000 m² production base is located in the Ceramic Industrial Park, Development Zone, Pingxiang, Jiangxi Province, China, one of the country's leading industrial ceramic clusters. Custom diameters, compositions and packaging can be discussed directly with our engineering team.

High-Quality Zirconium Oxide Balls - High Hardness Wear Resistant Zirconia Grinding Media Supplier, Factory

1 / 1

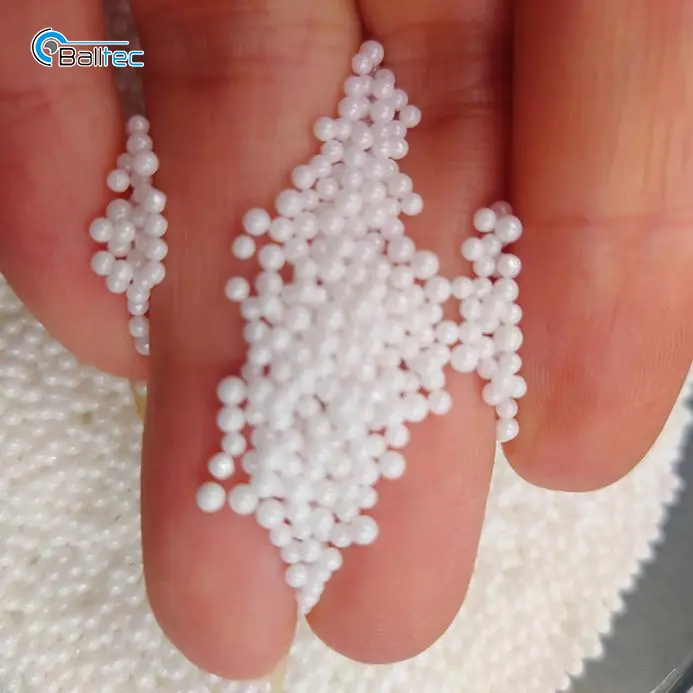

High-Quality Zirconium Oxide Balls - High Hardness Wear Resistant Zirconia Grinding Media Supplier, Factory

High-hardness zirconium oxide balls, also known as zirconia grinding media, feature exceptional density, superior wear resistance, and chemical inertness. Made from high-purity zirconia ceramic, these beads deliver ultra-low abrasion contamination and long service life compared to glass, alumina or steel media. Their uniform roundness and smooth surface ensure efficient impact and shear force during wet and dry milling, dispersing nanoparticles evenly without discoloring materials. Ideal for high-viscosity slurries, pigments, inks, cosmetics, pharmaceuticals, ceramics, electronic materials and laboratory planetary ball mills. Corrosion-resistant and thermally stable, they reduce maintenance downtime while boosting fineness and batch consistency. Available in standard and customized sizes for industrial bulk production and precision fine grinding applications worldwide.

Send Inquiry

Product Description

Technical Parameters

Item	Technical Parameters
Material	95% Zirconium Oxide (ZrO₂), Yttria Stabilized
Color	White, Glossy Surface
Density	≥6.0 g/cm³
Hardness	≥1200 HV (Vickers Hardness)
Compressive Strength	≥2000 MPa
Wear Loss	≤0.001%/24h (Ultra Low Abrasion)
Sphere Roundness	≤0.005 mm High Precision Polished
Particle Size Range	0.1mm / 0.3mm / 1mm / 3mm / 5mm / 10mm - 50mm (Custom OEM Sizes Available)
Thermal Stability	-50℃ ~ 1200℃ Heat Resistant
Chemical Resistance	Acid & Alkali Corrosion Resistant, Non-toxic
Main Applications	Ultrafine Grinding, Dispersing, Milling Media for Ink, Paint, Cosmetics, Pharmacy, Lab Ball Mill

Applications of Zirconium Oxide Balls (By Category)

1. Grinding & Milling

Ultra-fine wet/dry grinding for paints, inks, pigments, coatings, cosmetics, pharmaceuticals, ceramics, and electronic materials.
Low wear contamination ensures high purity of finished slurry; ideal for high-viscosity nano dispersion and laboratory planetary ball mills.

2. Polishing & Surface Finishing

Precision mirror polishing of glass, silicon wafers, metal parts, jewelry, and ceramic components.
High hardness and smooth spherical surface deliver uniform grinding force, reducing scratches and improving surface smoothness efficiently.

3. Bearing & Mechanical Components

Used as wear-resistant rolling elements in miniature bearings, valves, flow meters, and precision machinery.
Corrosion-proof, non-magnetic, and heat-resistant; suitable for high-speed, high-temperature, or chemical harsh working environments.

4. Sandblasting & Surface Treatment

High-density blasting media for metal descaling, deburring, rust removal, and surface matting finishing.
Higher impact toughness than glass beads; reusable with low breakage rate, improving blasting efficiency while lowering overall cost.

Frequently Asked Questions

What are the primary advantages of zirconium oxide balls over other media?

Zirconium oxide balls offer significantly higher density (≥6.0 g/cm³) and hardness (≥1200 HV) compared to glass or steel media. This results in faster grinding efficiency, ultra-low wear loss (≤0.001%/24h), and zero material discoloration.

What size ranges are available for precision grinding?

We provide standard sizes ranging from ultra-fine 0.1mm up to 50mm. Custom OEM sizes can also be manufactured based on specific industrial fine-grinding requirements.

Are these beads suitable for chemical and high-temperature environments?

Yes, they are acid and alkali corrosion-resistant, chemically inert, and capable of withstanding working temperatures from -50℃ up to 1200℃.

Which industries commonly utilize zirconia grinding media?

They are widely applied in high-viscosity slurries, paints, inks, cosmetics, pharmaceuticals, electronic ceramics, precision bearings, and laboratory planetary ball mills.

Why choose yttria-stabilized zirconia media for nano dispersion?

Yttria stabilization ensures high sphere roundness (≤0.005 mm) and high compressive strength (≥2000 MPa), delivering smooth impact force essential for consistent nanoparticle dispersion without contaminating delicate formulas.

High-Quality Zirconium Oxide Balls - High Hardness Wear Resistant Zirconia Grinding Media Supplier, Factory

Product Description

Technical Parameters

Applications of Zirconium Oxide Balls (By Category)

1. Grinding & Milling

2. Polishing & Surface Finishing

3. Bearing & Mechanical Components

4. Sandblasting & Surface Treatment

Frequently Asked Questions
