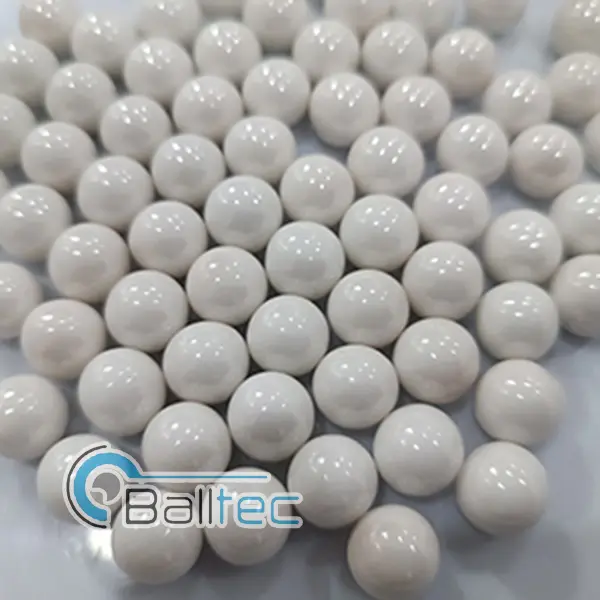

Our ZrO2 Grinding Beads are specially engineered high-performance grinding media, tailored for precision ball milling and high-standard powder processing applications across diverse industrial sectors. Fabricated from high-purity yttrium-stabilized zirconia (Y-TZP) through strict high-temperature sintering and precision surface finishing, these beads feature uniform sphericity, exceptional hardness and minimal wear, delivering consistent, contamination-free grinding results. They are designed to meet the strict requirements of fine powder preparation, ensuring precise particle size control and uniform dispersion, making them an optimal choice for precision-focused grinding operations.
| Parameter | Standard Specification |
|---|---|
| Material | Yttrium Stabilized ZrO2 (Y-TZP) |
| ZrO2 Purity | ≥95.5% |
| Vickers Hardness | 11.0-12.0 GPa |
| Bulk Density | 6.0-6.15 g/cm³ |
| Wear Rate | ≤0.008% per 1000h |
| Size Range | 0.2mm-25mm |
These ZrO2 grinding beads stand out with unique advantages for precision ball milling and powder processing. Perfect sphericity and strict size tolerance ensure even force distribution during milling, eliminating uneven grinding and guaranteeing consistent particle size distribution. Ultra-low wear rate minimizes bead loss and prevents metal or impurity contamination, preserving the purity of processed powders. High density enhances grinding efficiency, shortening milling cycles while achieving finer particle sizes, and excellent chemical stability makes them compatible with most raw materials without adverse reactions.
Strict size tolerance ensures even force distribution during milling, eliminating uneven grinding and guaranteeing consistent particle size distribution.
Minimizes bead loss and prevents metal or impurity contamination, preserving the ultimate purity of processed powders.
Enhances grinding efficiency, shortening milling cycles while achieving finer particle sizes effortlessly.
Excellent chemical stability makes them compatible with most raw materials without adverse chemical reactions.
Exclusively designed for precision ball milling and powder processing, these beads are widely applied in industries with strict powder quality demands. They are extensively used in new energy lithium battery material grinding, ensuring uniform electrode powder for improved battery performance. In electronic ceramics, functional ceramics and advanced ceramic materials, they achieve precise powder preparation for high-density finished products. They also serve the pharmaceutical, pigment, fine chemical and mineral powder industries, meeting high-precision grinding and pure powder processing requirements for both wet and dry milling.
Their uniform sphericity, high hardness and low wear rate ensure stable, precise grinding with no contamination, ideal for strict particle size control.
Yes, their excellent chemical stability and dense structure adapt to both wet and dry milling conditions without performance degradation.
No, their high chemical inertness and ultra-low wear rate eliminate impurity introduction, maintaining maximum powder purity for high-end applications.
They are fabricated from high-purity Yttrium Stabilized Zirconia (Y-TZP) with a ZrO2 purity level of ≥95.5%.
The beads come in a broad size range from 0.2mm to 25mm to satisfy various fine and ultra-fine grinding needs.
With a bulk density of 6.0-6.15 g/cm³, they deliver higher kinetic energy during milling, which shortens overall milling cycles while achieving finer particle sizes.
