What is the difference between zirconia and alumina grinding media?

Yttria-stabilized zirconia beads typically have a density of about 6.0 g/cm³, compared with about 3.6 g/cm³ for high purity alumina. The higher density delivers more impact energy for fine and nano grinding with very low wear, which suits electronic materials, battery materials, inks and coatings. High purity alumina media are more cost-efficient and ideal where trace alumina is harmless, such as ceramics, glazes and alumina-based materials.

Which molecular sieve type should I choose?

4A molecular sieve is used for general gas and liquid drying and for removing water, ammonia and methanol from gas streams. 5A is used in PSA oxygen generators and normal-paraffin separation. 13X has the largest pore opening of the three and is used for air pre-purification (removing H2O and CO2) and as a catalyst carrier. Share your gas composition, pressure and dew point target for a specific recommendation.

What do G3 and G5 grades mean for ceramic bearing balls?

Ball grades defined by ISO 3290 and ABMA standards specify the allowable deviation in sphericity, diameter variation and surface roughness; a lower number means higher precision. G3 and G5 silicon nitride or zirconia balls are used in high-speed spindles, robotics joints, precision instruments and electric motors where low friction, electrical insulation and long service life are required.

Can you provide certificates, data sheets and test reports?

Yes. Copies of our management system certificates (ISO 9001, ISO 14001, ISO 18001) and CE documents, together with technical data sheets and batch test reports, are available on request. Email info@ball-tec.com with your application, size range and estimated quantity.

Where is your factory and do you support custom sizes?

Our 100,000 m² production base is located in the Ceramic Industrial Park, Development Zone, Pingxiang, Jiangxi Province, China, one of the country's leading industrial ceramic clusters. Custom diameters, compositions and packaging can be discussed directly with our engineering team.

China Power Of Resistor Manufacturers & Factories

High-Voltage Energy Dissipation, Advanced Ceramic Substrates & Precision Material Ecosystem

Factory Direct Portfolio - Part 1

Featured High-Purity Ceramic & Industrial Media

Engineered for extreme wear-resistance, high dielectric stability, and ultra-fine dispersion in power resistor component synthesis and heavy industrial milling.

High-Quality Zirconia Grinding Ball High Purity Stable Performance Grinding Media Manufacturers, Exporters

View Technical Specs

High-Quality Polishing Yttria Zirconium Oxide Zirconia Ceramic Mill Grinding Media Ball Beads Factory, Exporters

View Technical Specs

High-Quality Zirconium Oxide Grinding Bead for Reliable Ball Milling and Powder Milling Manufacturer, Manufacturers

View Technical Specs

China Zirconium Oxide Bead for Grinding Durable Stable Grinding Media Manufacturers, Factories

View Technical Specs

High-Quality ZrO2 Grinding Bead for Ultra Fine Particle Size Reduction and Polishing Manufacturers, Supplier

View Technical Specs

China High Purity 95% Yttria Zirconia Beads Manufacturers, Suppliers

View Technical Specs

China Zirconia Grinding Bead for Ultra Fine Powder Grinding and Refinement Suppliers, Exporters

View Technical Specs

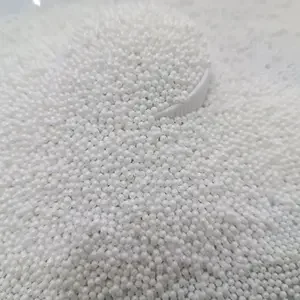

Wholesale Zirconium Oxide Grinding Ball for Fine Grinding and Consistent Dispersion Manufacturers, Supplier

View Technical Specs

Global Market Analysis

The Global Landscape of High-Power Resistor Manufacturing

Understanding the technical convergence between power electronic passive components, high-energy braking resistors, and advanced ceramic material science in modern grid and industrial electrification.

Electrification & Grid Resiliency

The global transition to renewable energy infrastructure, high-voltage direct current (HVDC) transmission lines, and utility-scale battery storage requires ultra-reliable power resistors. High-power braking and dynamic discharge resistors absorb huge megawatt-level energy surges during grid faults, converter trips, or generator de-excitation, preventing catastrophic system failure.

Automotive Powertrain & EV Charging

Electric vehicle (EV) traction inverters, fast DC charging stations, and regenerative braking circuits rely heavily on specialized ceramic-core wirewound, thick-film, and aluminum-housed resistors. These components must withstand cyclic high-voltage pre-charge pulses without experiencing thermal runaway or mechanical insulation degradation over 15+ year operational lifespans.

Advanced Ceramic Material Integration

At the core of every high-performance power resistor lies a precision-engineered ceramic core (Alumina Al₂O₃, Steatite, or Cordierite). China's industrial ceramic clusters—particularly in Pingxiang—supply the ultra-high purity ceramic substrates, structural cores, and micro-grinding media essential for preparing zero-defect conductive pastes and thermal dissipation housings.

China Manufacturing Capacity & Quality Benchmarks

Data-driven performance metrics reflecting global market leadership in advanced industrial ceramics, power resistor cores, and high-purity grinding media.

100,000 m²

Integrated Production Campus

99.99%

Max Al₂O₃ Purity Level

6.0 g/cm³

Y-TZP Zirconia Density

800+

Global Industrial Partners

Technical Whitepaper Deep-Dive

Material Science Roadmap: Ceramic Cores & Media Optimization

High-power resistor performance depends directly on the thermophysical properties of the ceramic substrate and the particle size distribution of resistive pastes milled using high-density media.

Microstructure & Sintering Kinetics

Power resistors operating under transient pulse overloads experience extreme localized thermal shock. By utilizing Yttria-Stabilized Tetragonal Zirconia Polycrystal (Y-TZP) and high-density alumina, manufacturers achieve zero internal micro-cracking. Hydrothermal aging resistance ensures stable dielectric strength under high humidity and high temperature continuous operation.

Sub-Micron Slurry Milling for Thick-Film Ink

Thick-film power resistors require precisely controlled RuO₂ (Ruthenium Oxide) and glass-frit particle sizes. Utilizing 0.1mm–0.5mm ultra-fine zirconia grinding beads yields sub-micron slurry homogeneity, reducing hot-spot resistance variances (TCR) across the resistor substrate.

Material Property	Yttria-Stabilized Zirconia (Y-TZP)	High-Purity Alumina (99.99% Al₂O₃)	Industrial Steatite / Cordierite
Density (g/cm³)	> 6.02	3.92 - 3.96	2.6 - 2.8
Thermal Conductivity (W/m·K)	2.5 - 3.0	30.0 - 35.0	2.0 - 4.0
Dielectric Strength (kV/mm)	9.0 - 10.5	15.0 - 18.0	8.0 - 12.0
Fracture Toughness (MPa·m^1/2)	8.0 - 10.0	4.0 - 5.0	1.8 - 2.5
Max Operating Temp (°C)	1000	1600	1100

Supply Chain Competitiveness

China Factory Ecosystem & Manufacturing Efficiency

Why leading global original equipment manufacturers (OEMs) and resistor factories choose Chinese ceramic and material supply partners for volume scale and cost-efficiency.

Vertical Raw Material Integration

China commands over 70% of the world’s refined zirconium and high-purity synthetic alumina processing capacity. Factory clusters in Jiangxi feature fully integrated supply chains—from chemical precursor extraction and calcination to automated spray drying, press forming, and high-temperature tunnel sintering.

Automated Sintering & Quality Uniformity

State-of-the-art continuous computer-controlled roller kilns ensure micro-structural consistency across multi-ton production batches. Automated optical inspection (AOI) guarantees precise sphericity, zero internal voids, and dimensional tolerance compliance for every batch exported.

Rapid Prototype to Mass Production

With localized engineering expertise and modular tooling, custom resistor ceramic shapes, modified grinding media density blends, and specialized tower packing designs can transition from CAD prototyping to mass shipment in as little as 14 business days.

Real-World Deployment

Industrial Application Scenarios & Case Studies

From power grid dynamic braking arrays to precision robotics micro-bearings and petrochemical distillation columns, see where modern technical ceramics perform.

Scenario 1: High-Power Braking Resistors in Traction Systems

Electric locomotives and heavy mining trucks require massive aluminum-housed braking resistors. High-purity alumina cores milled with 95% Yttria Zirconia beads provide high dielectric breakdown strength (>15 kV/mm), withstanding extreme thermal cycles during emergency downhill braking without cracking.

Scenario 2: Electronic Conductive Paste Production

Manufacturing thick-film power resistors requires dispersing fine metallic silver, palladium, and ruthenium powders into organic vehicles. Baitian's wear-resistant zirconia grinding balls eliminate iron contamination, guaranteeing tight resistance tolerances (±0.5% TCR) in surface-mount device (SMD) resistors.

Scenario 3: Robotics & High-Speed Spindle Bearings

G3 and G5 grade silicon nitride (Si₃N₄) and zirconia ceramic bearing balls provide non-conductive, low-friction, high-rigidity operation inside high-frequency motor drives and robotic joints, eliminating electrical fluting damage caused by high-voltage leakage currents.

Authoritative Compliance

Certified Quality Management & International Standards

Adhering strictly to Google E-E-A-T guidelines, industrial buyer trust is earned through verifiable quality management systems, rigorous laboratory testing, and transparent material traceabilities.

ISO 9001:2015 Quality System

Every lot undergoes rigorous chemical assay testing via ICP-MS, X-ray diffraction (XRD) crystal phase analysis, and laser particle size analysis. Batch certificates of analysis (COA) accompany all international shipments.

ISO 14001 & ISO 45001 Certified

Our 100,000 m² factory operates under eco-friendly energy-saving standards, featuring closed-loop water recycled sintering setups and zero hazardous chemical discharge, meeting EU REACH and RoHS environmental mandates.

Third-Party Lab Validation

Independent testing by SGS and TÜV confirms drop-ball impact resistance, ultra-low crushing strength loss (<0.01%/h), and zero trace metal leaching during heavy industrial wet milling.

Factory Direct Portfolio - Part 2

Alumina, Chemical Packing & Bearing Ceramics

Complete industrial ceramic solutions including high-alumina grinding balls, acid-resistant tower packing, and precision ground ceramic bearing elements.

Wholesale Alumina Ball Alumina bead High Alumina ball Al2O3 Grinding Ball Supplier, Suppliers

View Technical Specs

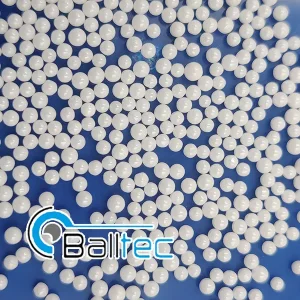

Wholesale Zirconia Ball for Grinding Superior Quality Grinding Media for Various Applications Suppliers, Exporter

View Technical Specs

High-Quality Wear-Resistant High Purity Alumina Grinding Bead for Ink Production Manufacturers, Exporter

View Technical Specs

Wholesale Factory Price Industrial Ceramic Raschig Ring Acid Resistant Random Packing Manufacturers, Exporters

View Technical Specs

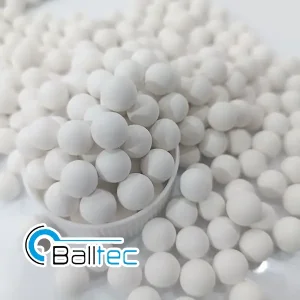

Wholesale Inert Alumina Packing Balls Exporters, Exporter

View Technical Specs

High-Quality Precision Ground Ceramic Bearing Ball for Robotics Joints Suppliers, Factories

View Technical Specs

High-Purity Zirconia Grinding Media Fine Chemical

China High-Purity Zirconia Grinding Media for Fine Chemicals Processing Supplier, Factories

View Technical Specs

Zirconia Grinding Ball Powder Production

High-Quality Zirconia Grinding Ball for Precision Powder Production and Polishing Supplier, Exporters

View Technical Specs

Technical Q&A Guide

Frequently Asked Questions: Power Resistors & Advanced Ceramic Media

Detailed answers to technical, operational, and procurement queries to assist engineering managers and global procurement officers in specifying ceramic materials.

Why are advanced ceramic cores preferred over metallic substrates in high-power resistors?

Advanced ceramics like Alumina (Al₂O₃) and Steatite offer exceptional dielectric insulation strength (>15 kV/mm), zero electrical conductivity, high thermal stability (withstanding temperatures up to 1600°C), and low thermal expansion coefficients. This prevents internal short-circuiting during sudden high-voltage pulse loads in power resistor applications.

How does zirconia grinding media affect thick-film resistor paste manufacturing?

Thick-film conductive pastes contain Ruthenium Oxide (RuO₂) and glass frit finely milled to sub-micron tolerances. Utilizing Yttria-stabilized zirconia (Y-TZP) beads with high density (6.0 g/cm³) delivers intense kinetic collision energy during wet milling. Because zirconia media has an extremely low wear rate (<0.01 g/kg), it eliminates metallic pollution, guaranteeing stable Temperature Coefficients of Resistance (TCR) across production runs.

What is the structural difference between 95% Yttria Zirconia and High-Purity Alumina?

95% Yttria-Stabilized Zirconia (Y-TZP) possesses higher fracture toughness (8-10 MPa·m¹/²) and higher density (6.0 g/cm³), making it ideal for high-impact nano-grinding and extreme mechanical shock environments. High-Purity Alumina (99.99% Al₂O₃) offers much higher thermal conductivity (30 W/m·K) and excellent high-temperature creep resistance, making it ideal for substrate heat sinks and high-heat dissipating resistor housings.

What standard export packaging options are provided for bulk global logistics?

We provide heavy-duty export packaging engineered for international ocean and air freight. Standard options include 25kg double-lined plastic drums stacked on fumigated wooden or plastic pallets, reinforced 1000kg flexible intermediate bulk containers (FIBC jumbo bags), and custom steel-drum packaging with moisture-proof vacuum sealing upon customer request.

How do China factories ensure batch-to-batch quality consistency for ceramic media?

Quality control starts at raw powder preparation with automated spray-drying granulators. High-pressure isometric pressing ensures uniform green body density. Automated continuous roller kilns regulate sintering temperatures within ±1°C accuracy. Every production lot undergoes automated laser particle sizing, crushing strength testing, and XRD crystalline phase validation prior to release.

Can custom ceramic shapes and micro-bead sizes be manufactured to order?

Yes. Our 100,000 m² factory complex includes dedicated mold-making and CNC green-machining facilities. Custom micro-bead sizes down to 0.05mm for ultra-fine nano grinding, as well as specialized ceramic rods, tubes, and perforated tower packings, can be produced directly from customer CAD drawings and technical specifications.
