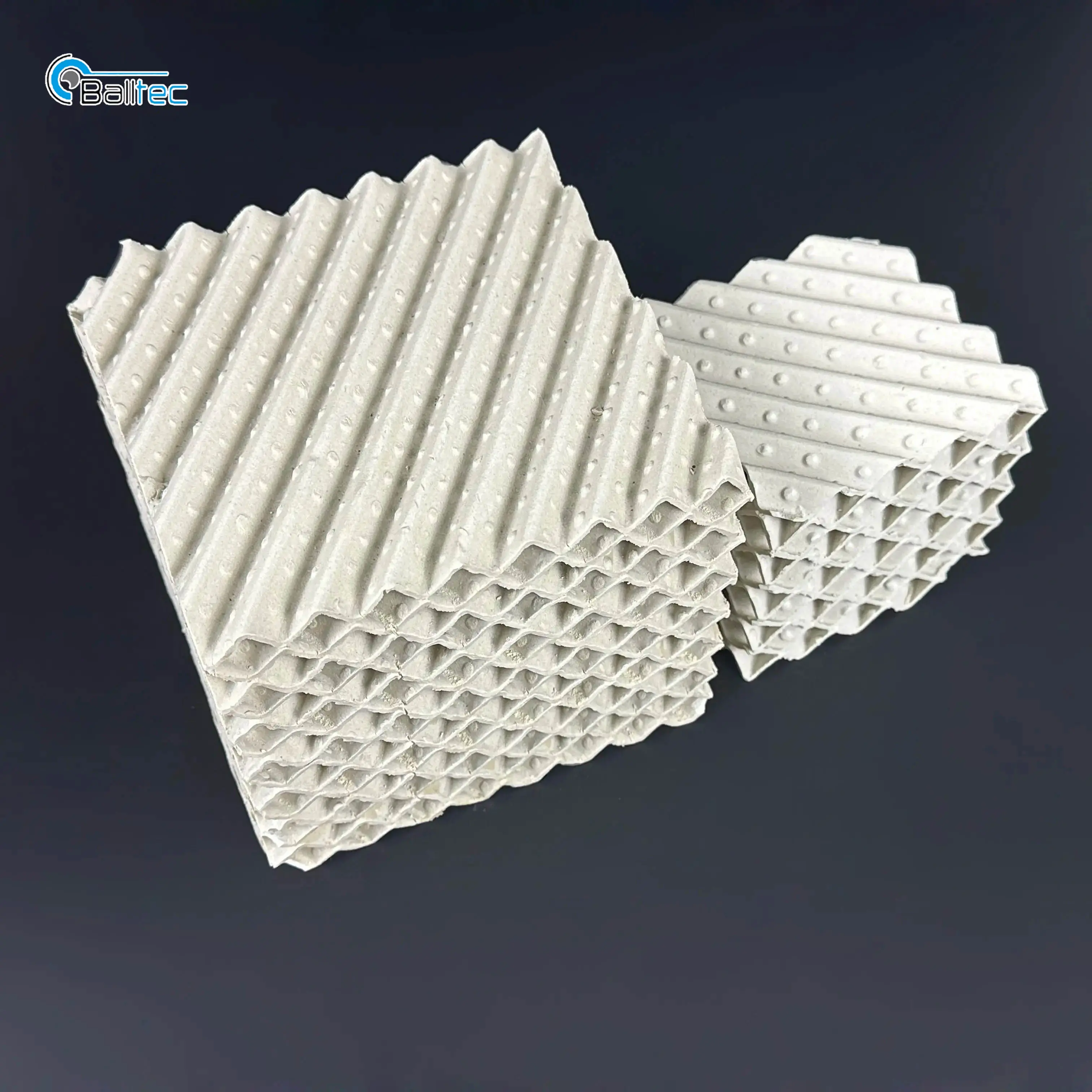

Ceramic corrugated packing is a disk-type structured packing composed of corrugated ceramic sheets arranged parallel and vertically to each other. It features a compact structure and large specific surface area.
When the tower diameter is less than 450 mm, the packing is made as a whole disk. When the diameter is larger than 450 mm, it is fabricated in segments.
Operating temperature up to 500 ℃ and bulk density of 500–1000 kg/m³. Sheet thickness varies: thicker sheets result in smaller specific surface area, while thinner sheets provide larger specific surface area for optimal separation or absorption.
Standard dimensions apply for high liquid flow processes like absorption and cooling. For low pressure drop applications (such as vacuum operations), lower peak height is utilized.
Generally about twice the peak height to ensure symmetrical corrugations; conventional corrugation pitches are widely adopted in industry.
Standard production height is 50 mm, up to a maximum of 200 mm. Smaller height enables more frequent redirection and superior liquid redistribution despite more complex installation.
Designed with an arrangement angle generally ranging between 30–45 degrees.
| Item | Ceramic Corrugated Structure Tower Packing | Ceramic Bellow Packing for Tower | Remarks |
|---|---|---|---|
| Product Name | Ceramic Corrugated Structure Tower Packing | Ceramic Bellow Packing for Tower | High-efficiency ceramic packing for industrial towers |
| Main Raw Materials | High-quality kaolin, feldspar, acid-resistant hard porcelain | High-quality kaolin, feldspar, acid-resistant hard porcelain | SiO₂ ≥ 72%, Al₂O₃ ≥ 23%, Fe₂O₃ ≤ 0.5% |
| Production Process | Batching → Ball Milling → Vacuum Pulping → Blank Forming → Corrugating → Shaping → High-temperature Firing | Batching → Ball Milling → Vacuum Pulping → Blank Forming → Bellow Forming → Shaping → High-temperature Firing | Firing temperature: 1200-1400℃ |
| Structure Type | Corrugated sheet structured, disk-type (integral/segmented) | Bellows-shaped, irregular/structured (customizable) | Corrugated: 30°/45° inclination; Bellow: uniform protrusions |
| Specific Surface Area | 125-500 m²/m³ (customizable) | 150-550 m²/m³ (customizable) | Depends on sheet/bellow thickness |
| Bulk Density | 500-1000 kg/m³ | 550-1050 kg/m³ | Related to structure and thickness |
| Porosity | 70%-78% | 72%-80% | High porosity for low resistance |
| Operating Temp Range | Long-term: -50℃ to 500℃ Short-term: Up to 800℃ |
Long-term: -50℃ to 500℃ Short-term: Up to 800℃ |
Stable performance under high temperature |
| Corrosion Resistance | Resistant to all inorganic acids (except HF), organic acids, organic solvents, and acidic gases | Resistant to all inorganic acids (except HF), organic acids, organic solvents, and acidic gases | Acid resistance ≥ 98.8%, Alkali resistance ≥ 88% |
| Crush Strength | ≥ 120 MPa | ≥ 130 MPa | High mechanical strength, not easy to break |
| Tower Diameter Adaptation | 0.1-11 m (integral < 450mm; segmented > 450mm) | 0.1-11 m (customizable according to tower diameter) | Suitable for laboratory and industrial towers |
| Packaging | 20kg/50kg sealed moisture-proof plastic bags; 100kg/200kg fiber drums | 20kg/50kg sealed moisture-proof plastic bags; 100kg/200kg fiber drums | Shock-proof lining to avoid damage during transportation |
| Service Life | 5-8 years (under normal operating conditions) | 6-10 years (under normal operating conditions) | Depends on operating conditions and maintenance |
| Key Advantages | Compact structure, uniform gas-liquid distribution, low resistance, high efficiency | Large specific surface area, strong anti-clogging, good flexibility, high mass transfer efficiency | Both have excellent corrosion and high temperature resistance |
It is a structured disk-type ceramic packing designed for industrial towers to facilitate efficient gas-liquid contact, absorption, and cooling with minimal resistance.
For tower diameters under 450 mm, the packing is manufactured as a single whole disk. For diameters exceeding 450 mm, it is fabricated in segmented pieces for easier handling and installation.
The packing supports long-term operation up to 500 ℃ and short-term peaks up to 800 ℃. It is resistant to all organic solvents, acidic gases, and inorganic acids (excluding hydrofluoric acid HF).
The 90° staggered alignment forces liquid to redistribute evenly after passing through each disk layer, which dramatically improves gas-liquid contact efficiency while lowering system resistance.
Under normal industrial operating conditions, Ceramic Corrugated Structure Packing offers a service life of 5 to 8 years, whereas Ceramic Bellow Packing lasts between 6 to 10 years.
